VUGen in Loadrunner
Q1. What is load testing?
Ans. Load testing is to test that if the application works fine with the loads that result from large number of simultaneous users, transactions and to determine weather it can handle peak usage periods.
Q2. What is Performance testing?
Ans. Timing for both read and update transactions should be gathered to determine whether system Functions are being performed in an acceptable timeframe. This should be done standalone and then in a multi user environment to determine the effect of multiple transactions on the timing of a single transaction.
Q3. What is LoadRunner?
Ans. LoadRunner works by creating virtual users who take the place of real users operating client software, such as sending requests using the HTTP protocol to IIS or Apache web servers. Requests from many virtual user clients are generated by Load Generators in order to create a load on various servers under test these load generator agents are started and stopped by Mercury's Controller program. The Controller controls load test runs based on Scenarios invoking compiled Scripts and associated Run-time Settings. Scripts are crafted using Mercury's "Virtual user script Generator" (named "V U Gen"), It generates C-language script code to be executed by virtual users by capturing network traffic between Internet application clients and servers. With Java clients, VuGen captures calls by hooking within the client JVM. During runs, the status of each machine is monitored by the Controller. At the end of each run, the Controller combines its monitoring logs with logs obtained from load generators, and makes them available to the "Analysis" program, which can then create run result reports and graphs for Microsoft Word, Crystal Reports, or an HTML webpage browser.
Each HTML report page generated by Analysis includes a link to results in a text file which Microsoft Excel can open to perform additional analysis. Errors during each run are stored in a database file which can be read by Microsoft Access.
Q4. What is Virtual Users?
Ans. Unlike a WinRunner workstation which emulates a single user's use of a client, LoadRunner can emulate thousands of Virtual Users.Load generators are controlled by VuGen scripts which issue non-GUI API calls using the same protocols as the client under test. But WinRunner GUI Vusers emulate keystrokes, mouse clicks, and other User Interface actions on the client being tested. Only one GUI user can run from a machine unless LoadRunner Terminal Services Manager manages remote machines with Terminal Server Agent enabled and logged into a Terminal Services Client session.
During run-time, threaded users share a common memory pool. So threading supports more Vusers per load generator.
The Status of Vusers on all load generators start from "Running", then go to "Ready" after going through the init section of the script. Vusers are "Finished" in passed or failed end status. Vusers are automatically "Stopped" when the Load Generator is overloaded.
To use Web Services Monitors for SOAP and XML, a separate license is needed, and vUsers require the Web Services add-in installed with Feature Pack (FP1). No additional license is needed for standard web (HTTP) server monitors Apache, IIS, and Netscape.
Q5. Explain the Load testing process?
Ans. Step 1: Planning the test. Here, we develop a clearly defined test plan to ensure the test scenarios we develop will accomplish load-testing objectives.
Step 2: Creating Vusers. Here, we create Vuser scripts that contain tasks performed by each Vuser, tasks performed by Vusers as a whole, and tasks measured as transactions.
Step 3: Creating the scenario. A scenario describes the events that occur during a testing session. It includes a list of machines, scripts, and Vusers that run during the scenario. We create scenarios using LoadRunner Controller. We can create manual scenarios as well as goal-oriented scenarios. In manual scenarios, we define the number of Vusers, the load generator machines, and percentage of Vusers to be assigned to each script. For web tests, we may create a goal-oriented scenario where we define the goal that our test has to achieve. LoadRunner automatically builds a scenario for us.
Step 4: Running the scenario. We emulate load on the server by instructing multiple Vusers to perform tasks simultaneously. Before the testing, we set the scenario configuration and scheduling. We can run the entire scenario, Vuser groups, or individual Vusers.
Step 5: Monitoring the scenario. We monitor scenario execution using the LoadRunner online runtime, transaction, system resource, Web resource, Web server resource, Web application server resource, database server resource, network delay, streaming media resource, firewall server resource, ERP server resource, and Java performance monitors.
Step 6: Analyzing test results. During scenario execution, LoadRunner records the performance of the application under different loads. We use LoadRunners graphs and reports to analyze the applications performance.
Q6. When do you do load and performance Testing?
Ans. We perform load testing once we are done with interface (GUI) testing. Modern system architectures are large and complex. Whereas single user testing primarily on functionality and user interface of a system component, application testing focuses on performance and reliability of an entire system. For example, a typical application-testing scenario might depict 1000 users logging in simultaneously to a system. This gives rise to issues such as what is the response time of the system, does it crash, will it go with different software applications and platforms, can it hold so many hundreds and thousands of users, etc. This is when we set do load and performance testing.
Q7. What are the components of LoadRunner?
Ans. The components of LoadRunner are The Virtual User Generator, Controller, and the Agent process, LoadRunner Analysis and Monitoring, LoadRunner Books Online.
Q8. What Component of LoadRunner would you use to record a Script?
Ans. The Virtual User Generator (VuGen) component is used to record a script. It enables you to develop Vuser scripts for a variety of application types and communication protocols.
Q9. When do you do load and performance Testing?
Ans. We perform load testing once we are done with interface (GUI) testing. Modern system architectures are large and complex. Whereas single user testing primarily on functionality and user interface of a system component, application testing focuses on performance and reliability of an entire system. For example, a typical application-testing scenario might depict 1000 users logging in simultaneously to a system. This gives rise to issues such as what is the response time of the system, does it crash, will it go with different software applications and platforms, can it hold so many hundreds and thousands of users, etc. This is when we set do load and performance testing.
Q10. What are the components of LoadRunner?
Ans. The components of LoadRunner are The Virtual User Generator, Controller, and the Agent process, LoadRunner Analysis and Monitoring, LoadRunner Books Online. What Component of LoadRunner would you use to record a Script? - The Virtual User Generator (VuGen) component is used to record a script. It enables you to develop Vuser scripts for a variety of application types and communication protocols.
Q11. What Component of LoadRunner would you use to play Back the script in multi user mode?
Ans. The Controller component is used to playback the script in multi-user mode. This is done during a scenario run where a vuser script is executed by a number of vusers in a group.
Q12. What is a rendezvous point?
Ans. You insert rendezvous points into Vuser scripts to emulate heavy user load on the server. Rendezvous points instruct Vusers to wait during test execution for multiple Vusers to arrive at a certain point, in order that they may simultaneously perform a task. For example, to emulate peak load on the bank server, you can insert a rendezvous point instructing 100 Vusers to deposit cash into their accounts at the same time.
Q13. What is a scenario?
Ans. A scenario defines the events that occur during each testing session. For example, a scenario defines and controls the number of users to emulate, the actions to be performed, and the machines on which the virtual users run their emulations.
Q14. Explain the recording mode for web Vuser script?
Ans. We use VuGen to develop a Vuser script by recording a user performing typical business processes on a client application. VuGen creates the script by recording the activity between the client and the server. For example, in web based applications, VuGen monitors the client end of the database and traces all the requests sent to, and received from, the database server. We use VuGen to: Monitor the communication between the application and the server; Generate the required function calls; and Insert the generated function calls into a Vuser script.
Q15. Why do you create parameters?
Ans. Parameters are like script variables. They are used to vary input to the server and to emulate real users. Different sets of data are sent to the server each time the script is run. Better simulate the usage model for more accurate testing from the Controller; one script can emulate many different users on the system.
Q16. What is correlation?
Ans. Correlation is used to obtain data which are unique for each run of the script and which are generated by nested queries. Correlation provides the value to avoid errors arising out of duplicate values and also optimizing the code (to avoid nested queries). Automatic correlation is where we set some rules for correlation. It can be application server specific. Here values are replaced by data which are created by these rules. In manual correlation, the value we want to correlate is scanned and create correlation is used to correlate.
Q17. How do you find out where correlation is required?
Ans. Two ways: First we can scan for correlations, and see the list of values which can be correlated. From this we can pick a value to be correlated. Secondly, we can record two scripts and compare them. We can look up the difference file to see for the values which needed to be correlated.
Q18. Where do you set automatic correlation options?
Ans. Automatic correlation from web point of view can be set in recording options and correlation tab. Here we can enable correlation for the entire script and choose either issue online messages or offline actions, where we can define rules for that correlation. Automatic correlation for database can be done using show output window and scan for correlation and picking the correlate query tab and choose which query value we want to correlate. If we know the specific value to be correlated, we just do create correlation for the value and specify how the value to be created.
Q19. What is a function to capture dynamic values in the web Vuser script?
Ans. Web_reg_save_param function saves dynamic data information to a parameter.
Q20. Which is VuGen Recording and Scripting language?
Ans. LoadRunner script code obtained from recording in the ANSI C language syntax, represented by icons in icon view until you click Script View.
Q21. What is Scenarios?
Ans. Scenarios encapsulate the Vuser Groups and scripts to be executed on load generators at run-time.
Manual scenarios can distribute the total number of Vusers among scripts based on the analyst-specified percentage (evenly among load generators). Goal Oriented scenarios are automatically created based on a specified transaction response time or number of hits/transactions-per-second (TPS). Test analysts specify the % of Target among scripts.
Q22. When do you disable log in Virtual User Generator, When do you choose standard and extended logs?
Ans. Once we debug our script and verify that it is functional, we can enable logging for errors only. When we add a script to a scenario, logging is automatically disabled. Standard Log Option: When you select Standard log, it creates a standard log of functions and messages sent during script execution to use for debugging. Disable this option for large load testing scenarios. When you copy a script to a scenario, logging is automatically disabled Extended Log Option: Select extended log to create an extended log, including warnings and other messages. Disable this option for large load testing scenarios. When you copy a script to a scenario, logging is automatically disabled. We can specify which additional information should be added to the extended log using the Extended log options.
Q23. How do you debug a LoadRunner script?
Ans. VuGen contains two options to help debug Vuser scripts-the Run Step by Step command and breakpoints. The Debug settings in the Options dialog box allow us to determine the extent of the trace to be performed during scenario execution. The debug information is written to the Output window. We can manually set the message class within your script using the lr_set_debug_message function. This is useful if we want to receive debug information about a small section of the script only.
Q24. How do you write user defined functions in LR?
Ans. Before we create the User Defined functions we need to create the external library (DLL) with the function. We add this library to VuGen bin directory. Once the library is added then we assign user defined function as a parameter. The function should have the following format: __declspec (dllexport) char* (char*, char*)
Q25. What are the changes you can make in run-time settings?
Ans. The Run Time Settings that we make are:
Pacing - It has iteration count.
Log - Under this we have Disable Logging Standard Log and
Extended Think Time - In think time we have two options like Ignore think time and Replay think time.
General - Under general tab we can set the vusers as process or as multithreading and whether each step as a transaction.
Q26. Where do you set Iteration for Vuser testing?
Ans. We set Iterations in the Run Time Settings of the VuGen. The navigation for this is Run time settings, Pacing tab, set number of iterations.
Q27. How do you perform functional testing under load?
Ans. Functionality under load can be tested by running several Vusers concurrently. By increasing the amount of Vusers, we can determine how much load the server can sustain.
Q28. How to use network drive mappings?
Ans. If several load generators need to access the same physical files, rather than having to remember to copy the files each time they change, each load generator can reference a common folder using a mapped drive. But since drive mappings are associated with a specific user:
Logon the load generator as the user the load generator will use
Open Windows Explorer and under Tools select Map a Network Drive and create a drive. It saves time and hassle to have consistent drive letters across load generators, so some organizations reserver certain drive letters for specific locations.
Open the LoadRunner service within Services (accessed from Control Panel, Administrative Tasks),
Click the "Login" tab.
Specify the username and password the load generator service will use. (A dot appears in front of the username if the userid is for the local domain).
Stop and start the service again.

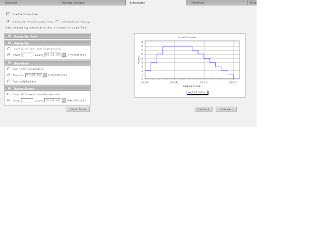

Q29. What is Ramp up? How do you set this?
Ans. This option is used to gradually increase the amount of Vusers/load on the server. An initial value is set and a value to wait between intervals can be specified. To set Ramp Up, go to Scenario Scheduling Options.
Q30. What is the advantage of running the Vuser as thread?
Ans. VuGen provides the facility to use multithreading. This enables more Vusers to be run pergenerator. If the Vuser is run as a process, the same driver program is loaded into memory for each Vuser, thus taking up a large amount of memory. This limits the number of Vusers that can be run on a single generator. If the Vuser is run as a thread, only one instance of the driver program is loaded into memory for the given number of Vusers (say 100). Each thread shares the memory of the parent driver program, thus enabling more Vusers to be run per generator.
Q31. If you want to stop the execution of your script on error, how do you do that?Ans. The lr_abort function aborts the execution of a Vuser script. It instructs the Vuser to stop executing the Actions section, execute the vuser_end section and end the execution. This function is useful when you need to manually abort a script execution as a result of a specific error condition. When you end a script using this function, the Vuser is assigned the status "Stopped". For this to take effect, we have to first uncheck the Continue on error option in Run-Time Settings.
Q32. What is the relation between Response Time and Throughput?
Ans. The Throughput graph shows the amount of data in bytes that the Vusers received from the server in a second. When we compare this with the transaction response time, we will notice that as throughput decreased, the response time also decreased. Similarly, the peak throughput and highest response time would occur approximately at the same time.
Q33. Explain the Configuration of your systems?
Ans. The configuration of our systems refers to that of the client machines on which we run the Vusers. The configuration of any client machine includes its hardware settings, memory, operating system, software applications, development tools, etc. This system component configuration should match with the overall system configuration that would include the network infrastructure, the web server, the database server, and any other components that go with this larger system so as to achieve the load testing objectives.
Q34. How do you identify the performance bottlenecks?
Ans. Performance Bottlenecks can be detected by using monitors. These monitors might be application server monitors, web server monitors, database server monitors and network monitors. They help in finding out the troubled area in our scenario which causes increased response time. The measurements made are usually performance response time, throughput, hits/sec, network delay graphs, etc.
Q35. If web server, database and Network are all fine where could be the problem?
Ans. The problem could be in the system itself or in the application server or in the code written for the application.
Q36. How did you find web server related issues?
Ans. Using Web resource monitors we can find the performance of web servers. Using these monitors we can analyze throughput on the web server, number of hits per second that occurred during scenario, the number of http responses per second, the number of downloaded pages per second.
Q37. How did you find database related issues?
Ans. By running Database monitor and help of Data Resource Graph we can find database related issues. E.g. you can specify the resource you want to measure on before running the controller and than you can see database related issues.
Q38. What is the difference between Overlay graph and Correlate graph?
Ans. Overlay Graph: It overlay the content of two graphs that shares a common x-axis. Left Y-axis on the merged graph shows the current graphs value & Right Y-axis show the value of Y-axis of the graph that was merged. Correlate Graph: Plot the Y-axis of two graphs against each other. The active graphs Y-axis becomes X-axis of merged graph. Y-axis of the graph that was merged becomes merged graphs Y-axis.
Q39. How did you plan the Load?
Ans. Load test is planned to decide the number of users, what kind of machines we are going to use and from where they are run. It is based on 2 important documents, Task Distribution Diagram and Transaction profile. Task Distribution Diagram gives us the information on number of users for a particular transaction and the time of the load. The peak usage and off-usage are decided from this Diagram. Transaction profile gives us the information about the transactions name and their priority levels with regard to the scenario we are deciding.
Q40. What does vuser_init action contain?
Ans. Vuser_init action contains procedures to login to a server.
Q41. What does vuser_end action contain?
Ans. Vuser_end section contains log off procedures.
Q42. What is think time?
Ans. Think time is the time that a real user waits between actions. Example: When a user receives data from a server, the user may wait several seconds to review the data before responding. This delay is known as the think time. Changing the Threshold: Threshold level is the level below which the recorded think time will be ignored. The default value is five (5) seconds. We can change the think time threshold in the Recording options of the Vugen.
Q43. What is the difference between standard log and extended log?
Ans. The standard log sends a subset of functions and messages sent during script execution to a log. The subset depends on the Vuser type Extended log sends a detailed script execution messages to the output log. This is mainly used during debugging when we want information about:
- Parameter substitution
- Data returned by the server
- Advanced trace
Q44. What is lr_debug_message?
Ans. The lr_debug_message function sends a debug message to the output log when the specified message class is set.
Q45. What is lr_output_message?
Ans. The lr_output_message function sends notifications to the Controller Output window and the Vuser log file.
Q46. What is lr_error_message?
Ans. The lr_error_message function sends an error message to the LoadRunner Output window.
Q47. What is lrd_stmt?
Ans. The lrd_stmt function associates a character string (usually a SQL statement) with a cursor. This function sets a SQL statement to be processed.
Q48. What is lrd_fetch?
Ans. The lrd_fetch function fetches the next row from the result set.
Q49. What is Throughput?
Ans. If the throughput scales upward as time progresses and the number of Vusers increase, this indicates that the bandwidth is sufficient. If the graph were to remain relatively flat as the number of Vusers increased, it would be reasonable to conclude that the bandwidth is constraining the volume of data delivered.
Q50. What are the various types of Goals in Goal-Oriented Scenario ?
Ans. Load Runner provides you with five different types of goals in a goal oriented scenario:
- The number of concurrent Vusers
- The number of hits per second
- The number of transactions per second
- The number of pages per minute
The transaction response time that you want your scenario Analysis Scenario (Bottlenecks): In Running Vuser graph correlated with the response time graph you can see that as the number of Vusers increases, the average response time of the check itinerary transaction very gradually increases. In other words, the average response time steadily increases as the load increases. At 56 Vusers, there is a sudden, sharp increase in the average response time. We say that the test broke the server. That is the mean time before failure (MTBF). The response time clearly began to degrade when there were more than 56 Vusers running simultaneously.
Ans. Load testing is to test that if the application works fine with the loads that result from large number of simultaneous users, transactions and to determine weather it can handle peak usage periods.
Q2. What is Performance testing?
Ans. Timing for both read and update transactions should be gathered to determine whether system Functions are being performed in an acceptable timeframe. This should be done standalone and then in a multi user environment to determine the effect of multiple transactions on the timing of a single transaction.
Q3. What is LoadRunner?
Ans. LoadRunner works by creating virtual users who take the place of real users operating client software, such as sending requests using the HTTP protocol to IIS or Apache web servers. Requests from many virtual user clients are generated by Load Generators in order to create a load on various servers under test these load generator agents are started and stopped by Mercury's Controller program. The Controller controls load test runs based on Scenarios invoking compiled Scripts and associated Run-time Settings. Scripts are crafted using Mercury's "Virtual user script Generator" (named "V U Gen"), It generates C-language script code to be executed by virtual users by capturing network traffic between Internet application clients and servers. With Java clients, VuGen captures calls by hooking within the client JVM. During runs, the status of each machine is monitored by the Controller. At the end of each run, the Controller combines its monitoring logs with logs obtained from load generators, and makes them available to the "Analysis" program, which can then create run result reports and graphs for Microsoft Word, Crystal Reports, or an HTML webpage browser.
Each HTML report page generated by Analysis includes a link to results in a text file which Microsoft Excel can open to perform additional analysis. Errors during each run are stored in a database file which can be read by Microsoft Access.
Q4. What is Virtual Users?
Ans. Unlike a WinRunner workstation which emulates a single user's use of a client, LoadRunner can emulate thousands of Virtual Users.Load generators are controlled by VuGen scripts which issue non-GUI API calls using the same protocols as the client under test. But WinRunner GUI Vusers emulate keystrokes, mouse clicks, and other User Interface actions on the client being tested. Only one GUI user can run from a machine unless LoadRunner Terminal Services Manager manages remote machines with Terminal Server Agent enabled and logged into a Terminal Services Client session.
During run-time, threaded users share a common memory pool. So threading supports more Vusers per load generator.
The Status of Vusers on all load generators start from "Running", then go to "Ready" after going through the init section of the script. Vusers are "Finished" in passed or failed end status. Vusers are automatically "Stopped" when the Load Generator is overloaded.
To use Web Services Monitors for SOAP and XML, a separate license is needed, and vUsers require the Web Services add-in installed with Feature Pack (FP1). No additional license is needed for standard web (HTTP) server monitors Apache, IIS, and Netscape.
Q5. Explain the Load testing process?
Ans. Step 1: Planning the test. Here, we develop a clearly defined test plan to ensure the test scenarios we develop will accomplish load-testing objectives.
Step 2: Creating Vusers. Here, we create Vuser scripts that contain tasks performed by each Vuser, tasks performed by Vusers as a whole, and tasks measured as transactions.
Step 3: Creating the scenario. A scenario describes the events that occur during a testing session. It includes a list of machines, scripts, and Vusers that run during the scenario. We create scenarios using LoadRunner Controller. We can create manual scenarios as well as goal-oriented scenarios. In manual scenarios, we define the number of Vusers, the load generator machines, and percentage of Vusers to be assigned to each script. For web tests, we may create a goal-oriented scenario where we define the goal that our test has to achieve. LoadRunner automatically builds a scenario for us.
Step 4: Running the scenario. We emulate load on the server by instructing multiple Vusers to perform tasks simultaneously. Before the testing, we set the scenario configuration and scheduling. We can run the entire scenario, Vuser groups, or individual Vusers.
Step 5: Monitoring the scenario. We monitor scenario execution using the LoadRunner online runtime, transaction, system resource, Web resource, Web server resource, Web application server resource, database server resource, network delay, streaming media resource, firewall server resource, ERP server resource, and Java performance monitors.
Step 6: Analyzing test results. During scenario execution, LoadRunner records the performance of the application under different loads. We use LoadRunners graphs and reports to analyze the applications performance.
Q6. When do you do load and performance Testing?
Ans. We perform load testing once we are done with interface (GUI) testing. Modern system architectures are large and complex. Whereas single user testing primarily on functionality and user interface of a system component, application testing focuses on performance and reliability of an entire system. For example, a typical application-testing scenario might depict 1000 users logging in simultaneously to a system. This gives rise to issues such as what is the response time of the system, does it crash, will it go with different software applications and platforms, can it hold so many hundreds and thousands of users, etc. This is when we set do load and performance testing.
Q7. What are the components of LoadRunner?
Ans. The components of LoadRunner are The Virtual User Generator, Controller, and the Agent process, LoadRunner Analysis and Monitoring, LoadRunner Books Online.
Q8. What Component of LoadRunner would you use to record a Script?
Ans. The Virtual User Generator (VuGen) component is used to record a script. It enables you to develop Vuser scripts for a variety of application types and communication protocols.
Q9. When do you do load and performance Testing?
Ans. We perform load testing once we are done with interface (GUI) testing. Modern system architectures are large and complex. Whereas single user testing primarily on functionality and user interface of a system component, application testing focuses on performance and reliability of an entire system. For example, a typical application-testing scenario might depict 1000 users logging in simultaneously to a system. This gives rise to issues such as what is the response time of the system, does it crash, will it go with different software applications and platforms, can it hold so many hundreds and thousands of users, etc. This is when we set do load and performance testing.
Q10. What are the components of LoadRunner?
Ans. The components of LoadRunner are The Virtual User Generator, Controller, and the Agent process, LoadRunner Analysis and Monitoring, LoadRunner Books Online. What Component of LoadRunner would you use to record a Script? - The Virtual User Generator (VuGen) component is used to record a script. It enables you to develop Vuser scripts for a variety of application types and communication protocols.
Q11. What Component of LoadRunner would you use to play Back the script in multi user mode?
Ans. The Controller component is used to playback the script in multi-user mode. This is done during a scenario run where a vuser script is executed by a number of vusers in a group.
Q12. What is a rendezvous point?
Ans. You insert rendezvous points into Vuser scripts to emulate heavy user load on the server. Rendezvous points instruct Vusers to wait during test execution for multiple Vusers to arrive at a certain point, in order that they may simultaneously perform a task. For example, to emulate peak load on the bank server, you can insert a rendezvous point instructing 100 Vusers to deposit cash into their accounts at the same time.
Q13. What is a scenario?
Ans. A scenario defines the events that occur during each testing session. For example, a scenario defines and controls the number of users to emulate, the actions to be performed, and the machines on which the virtual users run their emulations.
Q14. Explain the recording mode for web Vuser script?
Ans. We use VuGen to develop a Vuser script by recording a user performing typical business processes on a client application. VuGen creates the script by recording the activity between the client and the server. For example, in web based applications, VuGen monitors the client end of the database and traces all the requests sent to, and received from, the database server. We use VuGen to: Monitor the communication between the application and the server; Generate the required function calls; and Insert the generated function calls into a Vuser script.
Q15. Why do you create parameters?
Ans. Parameters are like script variables. They are used to vary input to the server and to emulate real users. Different sets of data are sent to the server each time the script is run. Better simulate the usage model for more accurate testing from the Controller; one script can emulate many different users on the system.
Q16. What is correlation?
Ans. Correlation is used to obtain data which are unique for each run of the script and which are generated by nested queries. Correlation provides the value to avoid errors arising out of duplicate values and also optimizing the code (to avoid nested queries). Automatic correlation is where we set some rules for correlation. It can be application server specific. Here values are replaced by data which are created by these rules. In manual correlation, the value we want to correlate is scanned and create correlation is used to correlate.
Q17. How do you find out where correlation is required?
Ans. Two ways: First we can scan for correlations, and see the list of values which can be correlated. From this we can pick a value to be correlated. Secondly, we can record two scripts and compare them. We can look up the difference file to see for the values which needed to be correlated.
Q18. Where do you set automatic correlation options?
Ans. Automatic correlation from web point of view can be set in recording options and correlation tab. Here we can enable correlation for the entire script and choose either issue online messages or offline actions, where we can define rules for that correlation. Automatic correlation for database can be done using show output window and scan for correlation and picking the correlate query tab and choose which query value we want to correlate. If we know the specific value to be correlated, we just do create correlation for the value and specify how the value to be created.
Q19. What is a function to capture dynamic values in the web Vuser script?
Ans. Web_reg_save_param function saves dynamic data information to a parameter.
Q20. Which is VuGen Recording and Scripting language?
Ans. LoadRunner script code obtained from recording in the ANSI C language syntax, represented by icons in icon view until you click Script View.
Q21. What is Scenarios?
Ans. Scenarios encapsulate the Vuser Groups and scripts to be executed on load generators at run-time.
Manual scenarios can distribute the total number of Vusers among scripts based on the analyst-specified percentage (evenly among load generators). Goal Oriented scenarios are automatically created based on a specified transaction response time or number of hits/transactions-per-second (TPS). Test analysts specify the % of Target among scripts.
Q22. When do you disable log in Virtual User Generator, When do you choose standard and extended logs?
Ans. Once we debug our script and verify that it is functional, we can enable logging for errors only. When we add a script to a scenario, logging is automatically disabled. Standard Log Option: When you select Standard log, it creates a standard log of functions and messages sent during script execution to use for debugging. Disable this option for large load testing scenarios. When you copy a script to a scenario, logging is automatically disabled Extended Log Option: Select extended log to create an extended log, including warnings and other messages. Disable this option for large load testing scenarios. When you copy a script to a scenario, logging is automatically disabled. We can specify which additional information should be added to the extended log using the Extended log options.
Q23. How do you debug a LoadRunner script?
Ans. VuGen contains two options to help debug Vuser scripts-the Run Step by Step command and breakpoints. The Debug settings in the Options dialog box allow us to determine the extent of the trace to be performed during scenario execution. The debug information is written to the Output window. We can manually set the message class within your script using the lr_set_debug_message function. This is useful if we want to receive debug information about a small section of the script only.
Q24. How do you write user defined functions in LR?
Ans. Before we create the User Defined functions we need to create the external library (DLL) with the function. We add this library to VuGen bin directory. Once the library is added then we assign user defined function as a parameter. The function should have the following format: __declspec (dllexport) char* (char*, char*)
Q25. What are the changes you can make in run-time settings?
Ans. The Run Time Settings that we make are:
Pacing - It has iteration count.
Log - Under this we have Disable Logging Standard Log and
Extended Think Time - In think time we have two options like Ignore think time and Replay think time.
General - Under general tab we can set the vusers as process or as multithreading and whether each step as a transaction.
Q26. Where do you set Iteration for Vuser testing?
Ans. We set Iterations in the Run Time Settings of the VuGen. The navigation for this is Run time settings, Pacing tab, set number of iterations.
Q27. How do you perform functional testing under load?
Ans. Functionality under load can be tested by running several Vusers concurrently. By increasing the amount of Vusers, we can determine how much load the server can sustain.
Q28. How to use network drive mappings?
Ans. If several load generators need to access the same physical files, rather than having to remember to copy the files each time they change, each load generator can reference a common folder using a mapped drive. But since drive mappings are associated with a specific user:
Logon the load generator as the user the load generator will use
Open Windows Explorer and under Tools select Map a Network Drive and create a drive. It saves time and hassle to have consistent drive letters across load generators, so some organizations reserver certain drive letters for specific locations.
Open the LoadRunner service within Services (accessed from Control Panel, Administrative Tasks),
Click the "Login" tab.
Specify the username and password the load generator service will use. (A dot appears in front of the username if the userid is for the local domain).
Stop and start the service again.
Q29. What is Ramp up? How do you set this?
Ans. This option is used to gradually increase the amount of Vusers/load on the server. An initial value is set and a value to wait between intervals can be specified. To set Ramp Up, go to Scenario Scheduling Options.
Q30. What is the advantage of running the Vuser as thread?
Ans. VuGen provides the facility to use multithreading. This enables more Vusers to be run pergenerator. If the Vuser is run as a process, the same driver program is loaded into memory for each Vuser, thus taking up a large amount of memory. This limits the number of Vusers that can be run on a single generator. If the Vuser is run as a thread, only one instance of the driver program is loaded into memory for the given number of Vusers (say 100). Each thread shares the memory of the parent driver program, thus enabling more Vusers to be run per generator.
Q31. If you want to stop the execution of your script on error, how do you do that?Ans. The lr_abort function aborts the execution of a Vuser script. It instructs the Vuser to stop executing the Actions section, execute the vuser_end section and end the execution. This function is useful when you need to manually abort a script execution as a result of a specific error condition. When you end a script using this function, the Vuser is assigned the status "Stopped". For this to take effect, we have to first uncheck the Continue on error option in Run-Time Settings.
Q32. What is the relation between Response Time and Throughput?
Ans. The Throughput graph shows the amount of data in bytes that the Vusers received from the server in a second. When we compare this with the transaction response time, we will notice that as throughput decreased, the response time also decreased. Similarly, the peak throughput and highest response time would occur approximately at the same time.
Q33. Explain the Configuration of your systems?
Ans. The configuration of our systems refers to that of the client machines on which we run the Vusers. The configuration of any client machine includes its hardware settings, memory, operating system, software applications, development tools, etc. This system component configuration should match with the overall system configuration that would include the network infrastructure, the web server, the database server, and any other components that go with this larger system so as to achieve the load testing objectives.
Q34. How do you identify the performance bottlenecks?
Ans. Performance Bottlenecks can be detected by using monitors. These monitors might be application server monitors, web server monitors, database server monitors and network monitors. They help in finding out the troubled area in our scenario which causes increased response time. The measurements made are usually performance response time, throughput, hits/sec, network delay graphs, etc.
Q35. If web server, database and Network are all fine where could be the problem?
Ans. The problem could be in the system itself or in the application server or in the code written for the application.
Q36. How did you find web server related issues?
Ans. Using Web resource monitors we can find the performance of web servers. Using these monitors we can analyze throughput on the web server, number of hits per second that occurred during scenario, the number of http responses per second, the number of downloaded pages per second.
Q37. How did you find database related issues?
Ans. By running Database monitor and help of Data Resource Graph we can find database related issues. E.g. you can specify the resource you want to measure on before running the controller and than you can see database related issues.
Q38. What is the difference between Overlay graph and Correlate graph?
Ans. Overlay Graph: It overlay the content of two graphs that shares a common x-axis. Left Y-axis on the merged graph shows the current graphs value & Right Y-axis show the value of Y-axis of the graph that was merged. Correlate Graph: Plot the Y-axis of two graphs against each other. The active graphs Y-axis becomes X-axis of merged graph. Y-axis of the graph that was merged becomes merged graphs Y-axis.
Q39. How did you plan the Load?
Ans. Load test is planned to decide the number of users, what kind of machines we are going to use and from where they are run. It is based on 2 important documents, Task Distribution Diagram and Transaction profile. Task Distribution Diagram gives us the information on number of users for a particular transaction and the time of the load. The peak usage and off-usage are decided from this Diagram. Transaction profile gives us the information about the transactions name and their priority levels with regard to the scenario we are deciding.
Q40. What does vuser_init action contain?
Ans. Vuser_init action contains procedures to login to a server.
Q41. What does vuser_end action contain?
Ans. Vuser_end section contains log off procedures.
Q42. What is think time?
Ans. Think time is the time that a real user waits between actions. Example: When a user receives data from a server, the user may wait several seconds to review the data before responding. This delay is known as the think time. Changing the Threshold: Threshold level is the level below which the recorded think time will be ignored. The default value is five (5) seconds. We can change the think time threshold in the Recording options of the Vugen.
Q43. What is the difference between standard log and extended log?
Ans. The standard log sends a subset of functions and messages sent during script execution to a log. The subset depends on the Vuser type Extended log sends a detailed script execution messages to the output log. This is mainly used during debugging when we want information about:
- Parameter substitution
- Data returned by the server
- Advanced trace
Q44. What is lr_debug_message?
Ans. The lr_debug_message function sends a debug message to the output log when the specified message class is set.
Q45. What is lr_output_message?
Ans. The lr_output_message function sends notifications to the Controller Output window and the Vuser log file.
Q46. What is lr_error_message?
Ans. The lr_error_message function sends an error message to the LoadRunner Output window.
Q47. What is lrd_stmt?
Ans. The lrd_stmt function associates a character string (usually a SQL statement) with a cursor. This function sets a SQL statement to be processed.
Q48. What is lrd_fetch?
Ans. The lrd_fetch function fetches the next row from the result set.
Q49. What is Throughput?
Ans. If the throughput scales upward as time progresses and the number of Vusers increase, this indicates that the bandwidth is sufficient. If the graph were to remain relatively flat as the number of Vusers increased, it would be reasonable to conclude that the bandwidth is constraining the volume of data delivered.
Q50. What are the various types of Goals in Goal-Oriented Scenario ?
Ans. Load Runner provides you with five different types of goals in a goal oriented scenario:
- The number of concurrent Vusers
- The number of hits per second
- The number of transactions per second
- The number of pages per minute
The transaction response time that you want your scenario Analysis Scenario (Bottlenecks): In Running Vuser graph correlated with the response time graph you can see that as the number of Vusers increases, the average response time of the check itinerary transaction very gradually increases. In other words, the average response time steadily increases as the load increases. At 56 Vusers, there is a sudden, sharp increase in the average response time. We say that the test broke the server. That is the mean time before failure (MTBF). The response time clearly began to degrade when there were more than 56 Vusers running simultaneously.
Requirements/Limitations/Tips
² To execute test scripts access to the Performance Center Performance Center
² Internet Information Services only supports a maximum of ten simultaneous client connections at once. Anymore will cause 403 errors.
² Mercury will always first make an anonymous connection to a web service before retrying the supplied login details.
² VUGen has a bug that causes it not to work correctly when using Web Service Protocol. Use HTTP/HTML protocol instead.
² When creating a script always use multiple protocol script even if it is just one protocol you’re testing. Again this is another bug with the software that causes problems…
² On most occasions VUGen will not correctly upload scripts to the server internally (it’s another bug); you will have to do it from the server.
Basic Script creation Tutorial
Below will illustrate how to create a simple script that requests an ASP page, inputs data into a textbox submits the request to the service.
Click on create “New Vuser Script” on the main Welcome Splash screen; this gives a protocol selection prompt. Select multiple protocol script on the left and select HTTP/HTML from the list using the right arrow button to place it in the empty Selected Protocols list. Click Ok
1
This will then create a new script and prompt for details about the actions it will record. The only bits we’re interested in are “URL Address” and “Record into Action.”
2
Set the URL Address to page you want to record; in this case its going to be a page hosted locally.
If this script was designed for a complex scenario where a user logging in was apart of the process then recording would start in vuser_init. This doesn’t apply in this case so we need to set the “Record into Action” drop down to “Action”.
Once ok is pressed; VUGen will go into recording mode and will open I.E. to the page specified.
This is the control that launches with I.E page. It has an Event counter that shows how many actions the page is undertaking during loading and user interaction.
Above shows the web page with the recording manager menu displayed. Displayed below is what
6

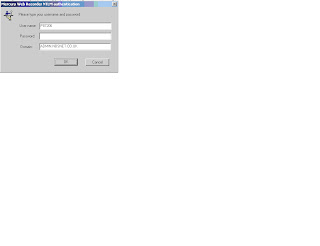

Now that all the actions have been captured; clicking stop on the Recording Tool bar will move on to the last stage of the script creation process. If the script requires login information then a prompt will appear asking for the information.
*Note: Your password will appear in encrypted format within the script.
Once this last stage is complete; you’ll be seeing a screen displaying the generated script; in this instance it looks like below.
Action()
{
web_set_user("ADMIN.NBSNET.CO.UK\\P87206",
lr_decrypt("44741b97ccfff0f5597ee7a4f0"),
"p1cymrv:80");
web_reg_find("Text=\r\n\tTest Page\r\n",
LAST);
web_url("test.aspx",
"URL=http://p1cymrv/test.aspx",
"Resource=0",
"RecContentType=text/html",
"Referer=",
"Snapshot=t1.inf",
"Mode=HTML",
LAST);
web_reg_find("Text=\r\n\tTest Page\r\n",
LAST);
web_submit_form("test.aspx_2",
"Snapshot=t2.inf",
ITEMDATA,
"Name=TextBox1", "Value=10000", ENDITEM,
LAST);
return 0;
}
You have created a script; so how do you run it? As stated previously; it needs to be executed from the Performance Center
Next open up the Performance Center
Then click upload script and use the browse button to find the zip file. You’re now ready to start a Test. Just click on “Create/Edit” under the “Load Tests” Menu and select your recently uploaded script from the list.
Above shows part of the first splash screen; you can just comment about the purpose of the script.
The next screen Design Groups; is where you specify how many virtual users you require plus the number of load generators and if you want to run multiple scripts together.
The last screen you need for basic load testing is the “Scheduler” Screen.
Here you specify how the Vuser’s behaviour should start and finish and also the duration of the test.
Use “Start” to begin the test or “Save” to quickly save these details for next round and valid your script.
When you press start, it will mostly likely report that you haven’t scheduled a time slot; if one is free at that time then you can quickly create one before you start your test.
Then off it goes…..
